Along with John Deere parts kits and used parts, Twin Deer offers the complete line from Craig Attachments. To see a complete listing, please visit Craig Attachments.

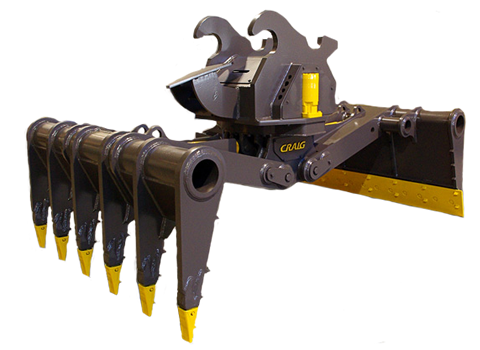

EXCAVATOR ROTATING MAT GRAPPLE [EX-CMG]

Perfect for loading, unloading, placing, and cleaning mats, the Craig Rotating Mat Grapple for excavators is the ideal tool to increase productivity and enhance matting capabilities. Features dual high torque motors for continuous 360° rotation and a low profile cylinder design that allows for greater opening capability and added stability over the competition.

mat grapple
  • Two grapple sizes available capable of carrying 8' wide mats
  • 120 - 150 class grapple capable of carrying two mats (~5,000 lbs*)
  • 200 - 300 class grapple capable of carrying four mats (~10,000 lbs*)
  • Extra wide opening
  • Low profile design for added stability
  • Available in 2 clamp configurations - paddle and rake or two paddles
  • Optional valve in head control kit available - requires only one set of auxiliary lines
  • Dual bushings at all pivot points with grease fittings
  • Torque tube design and AR 100 plate construction in rake and paddle
  • * Max capacity subject to machine capability
pipe grapple

PIPE GRAPPLE [WL-CPG2]

The Craig Pipe Grapple is designed to work with all standard oil field pipe and features a low profile design that is the ultimate in high visibility.

  • Low back frame
  • Simple chain tine adjustment
  • Hoses concealed in frame
  • Central hose bank
  • Greasable pins and lugs
  • 4" bore cylinders with 2" shaft
  • 54" and 60" standard tine sizes
mat grapple

MAT GRAPPLE [WL-CMG]

Designed for work in the oil fields, the Craig Mat Grapple is the perfect tool for moving drilling mats around the job site.

  • Simple chain tine adjustment
  • Hoses concealed in frame
  • Central hose bank
  • Greasable pins and lugs
  • 5" bore cylinders with 2.5" shaft
  • Tooth textured clamp provides a safe, secure grip
